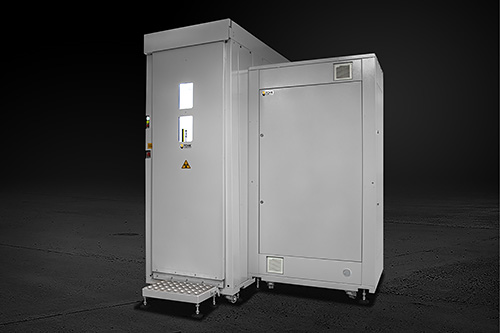

Full Body X-ray screening system- FB SCAN

Full Body X-ray screening system- FB SCAN


Material detectability

Metal, ceramic, plastics, powders, explosives, narcotics etc.

Detection area capability

Objects hidden on and inside the body

Scan time, seconds

not more then 6

Warming time, seconds


Through-put, persons per hour


Penetration (steel), mm

22 (Medium mode) 30 (High dose mode)

Wire detectability

36 AWG (0,15 mm)


Low dose X-ray radiation

Dose per inspection

< 0,25 μSv (<0,025 mRem) (Medium mode)*

Dimensions (L х W х H), mm

2600 x 2750 x 2000

Width of the tunnel, mm


Weight, kg


Can be optimized according to the customer’s needs

The Full Body(FB) X-ray screening system is designed for effective detection of items hidden under clothes, on and inside the human body. This system can be used in anti-terrorism application, to protect state facilities, at border crossings and prisons.

The system can be used to provide access control required for special security zones. It yields high resolution of detected images due to the minimum possible dose of irradiation.

The pre-programmed functions of the system can help an operator to quickly perform the image processing to identify hidden objects.

The main advantages of this design are nondestructivity, low dose load, high penetration and high productivity due to high sensitivity of the detector.

Additional internal protection against scattered X-ray is used, practically, with no exclusion zone.

  • The system can be installed at any place where a power supply is provided and is intended for 24/7 operation all-year-round. The inspection is carried out automatically with images being transmitted to the PC.
  • Steel scanning module that includes X-ray unit, full body-sized line detector, local X-ray protection for reducing scattered radiation zone. Integrated color lights indicate the system’s status: green - ready, yellow - X-ray On, red - error;
  • Movable belt with steps;
  • Remote control keyboard with the Power On/Emergency Off buttons;
  • Remote control unit based on PC with Windows OS and 21” TFT screen;
  • Integrated special software for storing and enhancing images including all known filtering types;
  • Meets the ANSI N43.17-2009 standard.
