TS-SCAN 6040

TS-SCAN 6040


Tunnel size (W x H), mm


Max. object size (W x H), mm


Conveyor height, mm

649 (648*)

Conveyor speed, m/s


Max. object weight, kg


Resolution (wire detection measured by Cu wire)

38 AWG (0,1mm)

Penetration (steel), mm

32 typical 35

Film safety

guaranteed up to ISO 1600 (33 DIN)

Number of X-ray generators*

2 or 1

Anode voltage, kV cp


Number of views and generators*

1, 2



Power consumption, kVA


Dimensions (L х W х H), mm


Weight, kg

Not more than 580

  • Can be optimized according to the customer’s needs

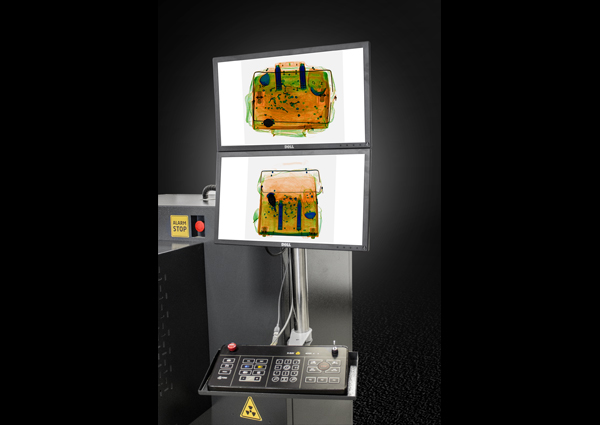

TS-SCAN 6040 is a unique multi-view X-ray inspection system. The baggage views provide its complete perspective regardless of its positioning in the X-ray system. Obviates the operator’s necessity to reverse and rescan the baggage.

The multi-view system eliminates any possibility of deliberate concealment of prohibited articles in carry-on baggage. A knife is visible at least in one of four views (projections), regardless of its position in the baggage (see second picture on the left).

The dual energy technology provides automatic color coding of materials according to their effective atomic numbers. TS-SCAN 6040 has a large industry standard tunnel opening of 600 mm wide and 400 mm high.

Image processing features: material separation color display, pseudo color, black and white image, positive/negative, contrast manipulation, edge enhancement, organic/inorganic stripping, high/low penetration, high density alert.

Image display features: image review, variable zoom up to 32x, view change.

Additional features: baggage counter, data and time display, all views simultaneous preview.

TS-SCAN 6040 meets all international health and safety requirements.

Additionally, the introscopes of the TS-SCAN series can be equipped with an artificial intelligence system integrated into the specialized software of the TSNK X-ray television conveyor-type units. This AI system assists in detecting dangerous and prohibited items as a whole and also as individual fragments. The process is done by comparing them with more than 5 million images of all kinds of weapons, explosives and their components, obtained from various angles, which are stored in the AI library on the device. Moreover, the system is trained to assess both the contours of the objects and their internals, which helps identify real grenades and military weapons, while disregarding their mass-dimensional replicas. This option is not available in products from domestic or foreign manufacturers supplying inspection equipment to the Russian market.
